Example

This example demonstrates how to use this Transformation to detect changes in temperature or flow rate.
Refer to configuration to understand all configuration options of this Agent.

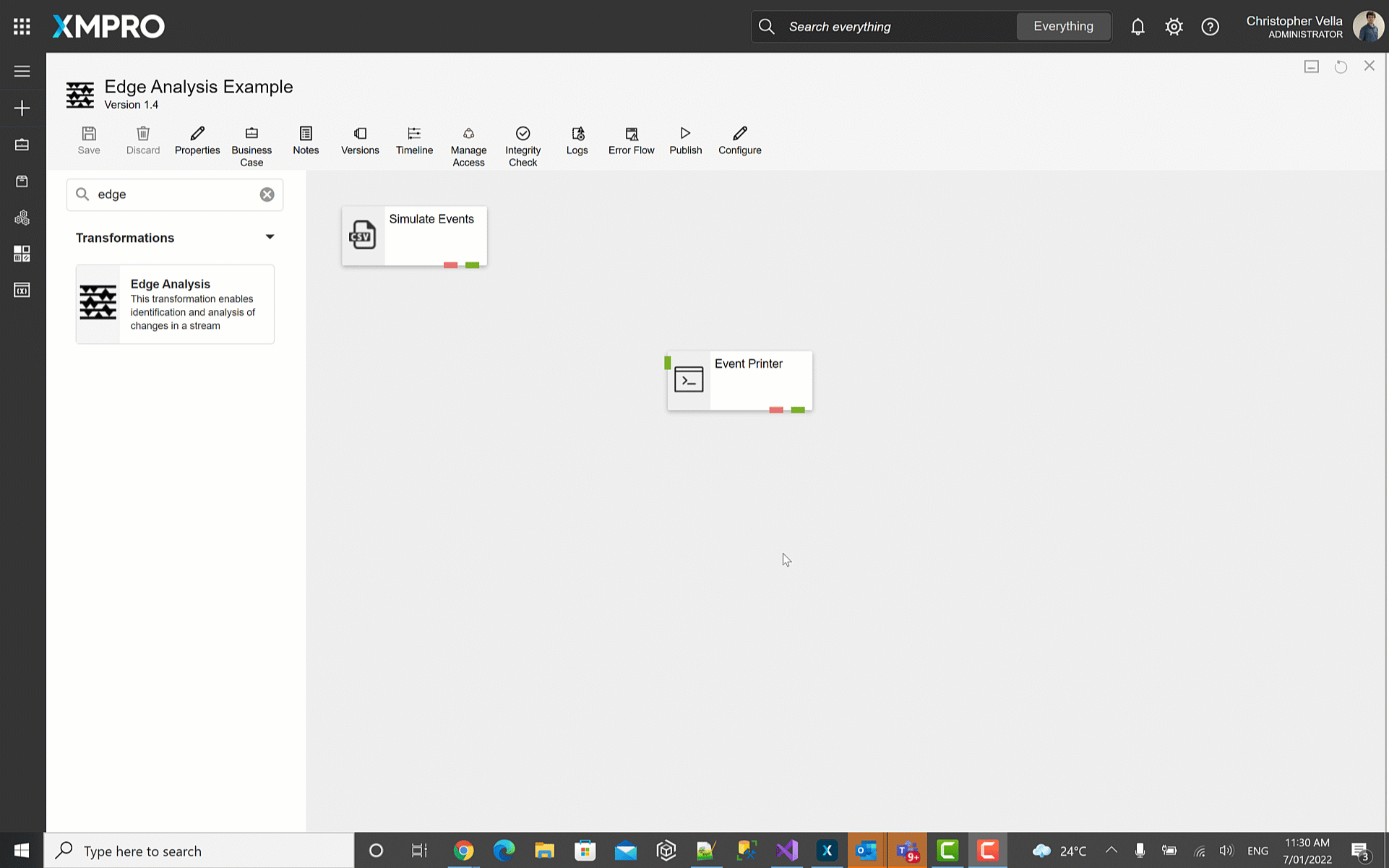

Step 1: Add the Agent
Drag the Edge Analysis Transformation Agent onto the canvas, link the input endpoint to the pump data, the output endpoint to the printer, and save the Data Stream.
Step 2: Configure General
Select the Agent, and click Configure. Keep the default Collection.
Step 3: Configure Input
Select the properties to monitor for changes. In this case, select Temperature and Flow Rate.
Step 4: Results
Apply the changes, save the Data Stream, and publish it.
Look at the Live Data View to see the results. Columns for the monitored attributes have been added to the incoming events. Every time the Temperature or Flow Rate differs from the previous record, the corresponding change property value is true and appears as a ticked checkbox.
Files
Name
File
Security Key
Data Stream
Edge Analysis Example.xuc
C0mp|ex123
Simulated Events
Edge Analysis Example CSV.csv
​
See the Import, Export, and Clone - XMPro article for steps to import a Data Stream.

Name	File	Security Key
Data Stream	Edge Analysis Example.xuc	C0mp\|ex123
Simulated Events	Edge Analysis Example CSV.csv
