Configuration

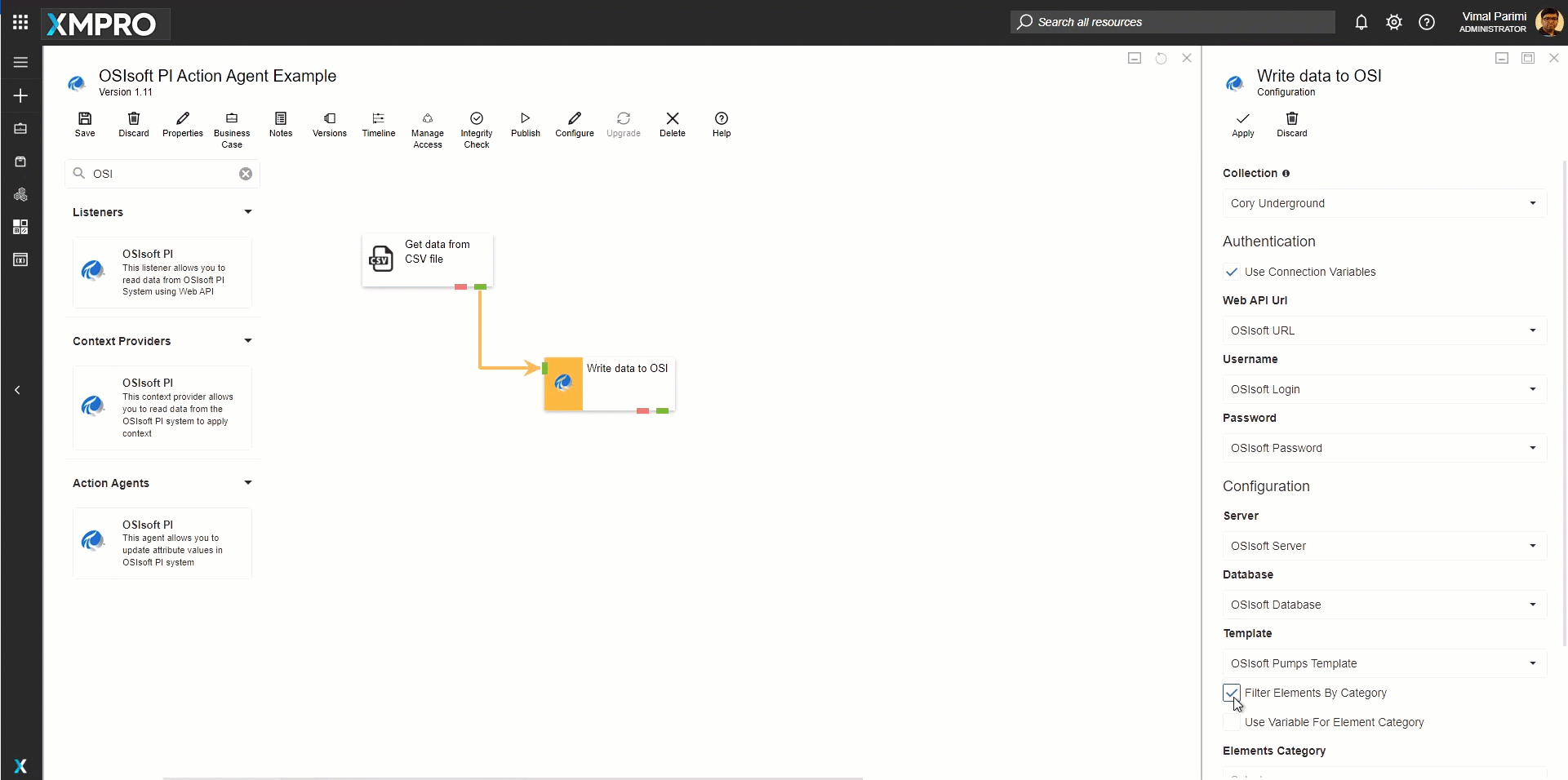

This section explains each of the properties in the configuration blade.
General
Property
Description
Collection
This associates the Agent to a specific Collection (default to that of the current Data Stream).
Refer to Collections and Stream Hosts to understand more about Collections.
Authentication
Property
Description
Use Connection Variables
Tick to select saved variables; or enter the text manually for the authentication properties.
Web API Url
Web API Url of the OSIsoft PI instance.
Username
The user name to use for authenticating the connection.
Password
The password to use for authenticating the connection.
Configuration
Property
Description
Server
The name of the server to connect to.
Once selected, the Database property is populated with the list of available databases.
Database
The name of the database to connect to.
Template
The name of the template that contains the attributes to be updated.
Filter Elements by Category
Tick to filter the Attributes property by element category.
Use Variable For Element Category
Tick to select a saved variable, or enter the text manually for the Elements Category (applies when Filter Elements By Category is ticked).
Elements Category
The elements category to filter the Elements property (applies when Filter Elements By Category is ticked).
Filter Attributes by Category
Tick to filter the Attributes property by category.
Attributes Category
The attributes category to filter the Attributes property (applies when Filter Attributes By Category is ticked).
Attributes
One or more attributes to update. At least one attribute must be selected.
Elements Cache Refresh Interval (hours)
The interval in hours for the Elements cache to refresh.
Endpoints
Name
Description
Input
This endpoint is used to receive data from the parent agent.
Output
Events received from the parent Agent will be made available on this endpoint with unchanged attributes and data.
Error
If errors are encountered during the execution of this Agent they will be published on this endpoint.

Property	Description
Collection	This associates the Agent to a specific Collection (default to that of the current Data Stream).

Property	Description
Use Connection Variables	Tick to select saved variables; or enter the text manually for the authentication properties.
Web API Url	Web API Url of the OSIsoft PI instance.
Username	The user name to use for authenticating the connection.
Password	The password to use for authenticating the connection.

Property	Description
Server	The name of the server to connect to. Once selected, the Database property is populated with the list of available databases.
Database	The name of the database to connect to.
Template	The name of the template that contains the attributes to be updated.
Filter Elements by Category	Tick to filter the Attributes property by element category.
Use Variable For Element Category	Tick to select a saved variable, or enter the text manually for the Elements Category (applies when Filter Elements By Category is ticked).
Elements Category	The elements category to filter the Elements property (applies when Filter Elements By Category is ticked).
Filter Attributes by Category	Tick to filter the Attributes property by category.
Attributes Category	The attributes category to filter the Attributes property (applies when Filter Attributes By Category is ticked).
Attributes	One or more attributes to update. At least one attribute must be selected.
Elements Cache Refresh Interval (hours)	The interval in hours for the Elements cache to refresh.

Name	Description
Input	This endpoint is used to receive data from the parent agent.
Output	Events received from the parent Agent will be made available on this endpoint with unchanged attributes and data.
Error	If errors are encountered during the execution of this Agent they will be published on this endpoint.
